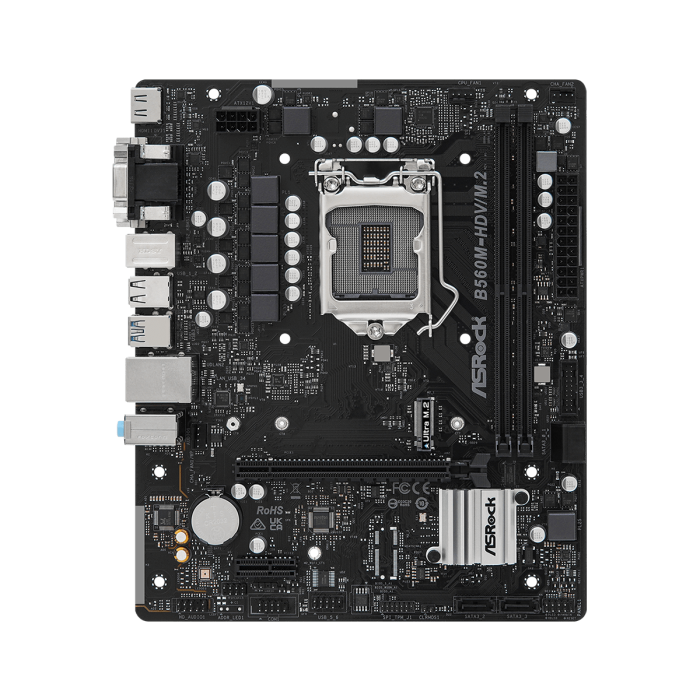

ASRock B560M HDV/M.2
PCIe 4.0, USB 3.2 Gen1
559 DKK
På lager
Specifikationer
Generelt
Sokkel
LGA 1200
Formfaktor
M-ATX
Chipsæt
B560 (Intel 10+11th. gen)
Kompatible processorer
10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
WiFi
Ja
Antal RAM slots
2
RAM Teknologi
DDR4
RAM
Ram Bus Clock
4000MHz+ (OC)*
Maks. RAM kapacitet
128 GB
Interface
Ekspansionsåbninger
11th Gen Intel® Core™ Processors
1 x PCI Express 4.0 x16 Slot* 10th Gen Intel® Core™ Processors
1 x PCI Express 3.0 x16 Slot*
2 x PCI Express 3.0 x1 Slots
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Inte
1 x PCI Express 4.0 x16 Slot* 10th Gen Intel® Core™ Processors
1 x PCI Express 3.0 x16 Slot*
2 x PCI Express 3.0 x1 Slots
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Inte
Grænseflade (lagring)
6 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug*
1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4 x4 (64 Gb/s) (with 11th Gen Intel® Core™ Processors) or
1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen4 x4 (64 Gb/s) (with 11th Gen Intel® Core™ Processors) or
Interne interfaces
1 x SPI TPM Header
1 x Chassis Intrusion and Speaker
2 x RGB LED Headers*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
3 x Chassis/Water
1 x Chassis Intrusion and Speaker
2 x RGB LED Headers*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
3 x Chassis/Water
Interfaces
3 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protecti
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection) - 2 x USB 2.0 Ports (Supports ESD Protecti
Strømkontakter
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
Misc.
Dybde
24
Bredde
24
Tilbehør
Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
2 x SATA Data Cables
3 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket
