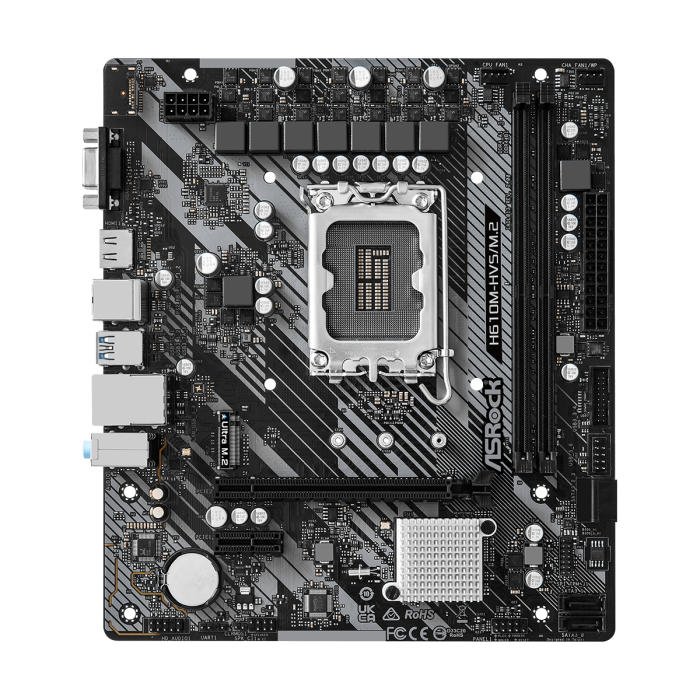

ASRock H610m-HSV Bundkort
mATX, LGA1700
719 DKK
På lager
Specifikationer
Generelt
Sokkel
LGA 1700
Formfaktor
M-ATX
Chipsæt
H610 (Intel 12+13th. gen)
Kompatible processorer
13th Gen & 12th Gen Intel® Core™ Processors
WiFi
Nej
Antal RAM slots
2
RAM Teknologi
DDR4
RAM
Ram Bus Clock
Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
Supports DDR4 non-ECC, un-buffered memory up to 3200
2 x DDR4 DIMM Slots
Supports DDR4 non-ECC, un-buffered memory up to 3200
Maks. RAM kapacitet
128 GB
Interface
Ekspansionsåbninger
1x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*
1x PCIe 3.0 x1 Slot (PCIE1)
1x PCIe 3.0 x1 Slot (PCIE1)
Grænseflade (lagring)
1x Ultra M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
4x SATA3 6.0 Gb/s Connectors
4x SATA3 6.0 Gb/s Connectors
Interne interfaces
1x SPI TPM Header
1x Chassis Intrusion and Speaker Header
1x CPU Fan Connector (4-pin)*
1x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector
1x Front Panel Audio
1x Chassis Intrusion and Speaker Header
1x CPU Fan Connector (4-pin)*
1x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector
1x Front Panel Audio
Interfaces
1x PS/2 Mouse/Keyboard Port
1x D-Sub Port
1x HDMI Port
2x USB 3.2 Gen1 Ports (Supports ESD Protection)
4x USB 2.0 Ports (Supports ESD Protection)
1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Spe
1x D-Sub Port
1x HDMI Port
2x USB 3.2 Gen1 Ports (Supports ESD Protection)
4x USB 2.0 Ports (Supports ESD Protection)
1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Spe
Strømkontakter
1x 24 pin ATX Power Connector
1x 8 pin 12V Power Connector
1x 8 pin 12V Power Connector
Misc.
Dybde
23
Bredde
19
Tilbehør
Quick Installation Guide, Support CD, I/O Shield
2x SATA Data Cables
1x Screw for M.2 Socket
2x SATA Data Cables
1x Screw for M.2 Socket
