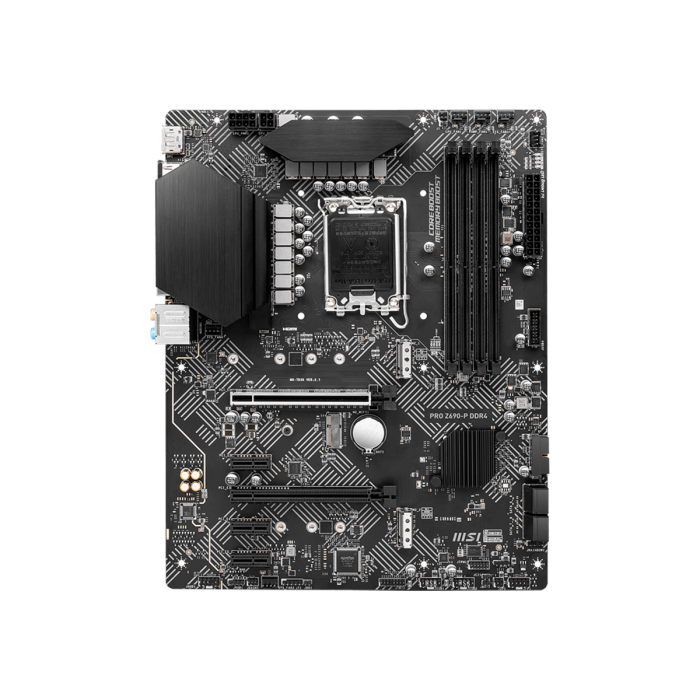

MSI PRO Z690-P DDR4 Bundkort DEMO

Demo Motherboards kan komme uden orginal indpakning og kan mangle sata kabler, m2. skruer, backplate til cpu køling, anetenner til Wifi og driver cd/install USB.
  • MSI PRO Z690-P DDR4 Bundkort DEMO
  • MSI PRO Z690-P DDR4 Bundkort DEMO
  • MSI PRO Z690-P DDR4 Bundkort DEMO
  • MSI PRO Z690-P DDR4 Bundkort DEMO
  • MSI PRO Z690-P DDR4 Bundkort DEMO

Pris: 1.399 kr.

Special Price 1.199 kr.

På Lager

MSI PRO Z690-P DDR4 Bundkort DEMO MSI PRO Z690-P DDR4 Bundkort DEMO MSI PRO Z690-P DDR4 Bundkort DEMO MSI PRO Z690-P DDR4 Bundkort DEMO MSI PRO Z690-P DDR4 Bundkort DEMO

Beskrivelse

Specifikationer

Generelt
Sokkel LGA 1700
Formfaktor ATX
Chipsæt Z690 (Intel 12th. gen)
Kompatible processorer Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Ram
RAM Teknologi DDR4
Ram Bus Clock 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
Antal RAM slots 4
Maks. RAM kapacitet 128 GB
Ekspansion
Ekspansionsåbninger 2 x PCIe x16 slots
3 x PCIe 3.0 x1 slot (from Z690 chipset)
Grænseflade (lagring) 4 x SATA 6Gb/s ports (from Z690 chipset)
2 x M.2 slots (Key M)
Interne interfaces 2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan
Interface 1 x DisplayPort
2 x USB 2.0
1 x LAN-port
6 x Audio connectors
1 x BIOS button
1 x HDMI
2 x USB 3.2 Gen 1 5Gbps Type-A
1 x USB 3.2 Gen 2x2 20Gbps Type-C
1 x USB 3.2 Gen 2 10 Gbps Type-A
Strømkontakter 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
Diverse
Tilbehør 1 x M.2 Screw / standoff set
2 x M.2 Clips
2 x SATA Cables
Product Registration Card
1 x I/O Shield
1 x Driver DVD
Quick Installation Guide
Bredde 30
Dybde 24



Yderligere information

Ekstern beskrivelse (URL) https://www.msi.com/Motherboard/PRO-Z690-P-DDR4
Specifications Widget

Specifikationer

Generelt
Sokkel LGA 1700
Formfaktor ATX
Chipsæt Z690 (Intel 12th. gen)
Kompatible processorer Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
Ram
RAM Teknologi DDR4
Ram Bus Clock 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) MHz
Antal RAM slots 4
Maks. RAM kapacitet 128 GB
Ekspansion
Ekspansionsåbninger 2 x PCIe x16 slots
3 x PCIe 3.0 x1 slot (from Z690 chipset)
Grænseflade (lagring) 4 x SATA 6Gb/s ports (from Z690 chipset)
2 x M.2 slots (Key M)
Interne interfaces 2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water-pump fan
Interface 1 x DisplayPort
2 x USB 2.0
1 x LAN-port
6 x Audio connectors
1 x BIOS button
1 x HDMI
2 x USB 3.2 Gen 1 5Gbps Type-A
1 x USB 3.2 Gen 2x2 20Gbps Type-C
1 x USB 3.2 Gen 2 10 Gbps Type-A
Strømkontakter 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
Diverse
Tilbehør 1 x M.2 Screw / standoff set
2 x M.2 Clips
2 x SATA Cables
Product Registration Card
1 x I/O Shield
1 x Driver DVD
Quick Installation Guide
Bredde 30
Dybde 24

Mobile product description Nej
Mobile product banner Nej
Product Series Not applicable
Varenummer PRO Z690-P DDR4-DEMO
Gear baggrundsfarve Hvid
Delivery time Nej
Lagerstatus color Nej
Demo product? Ja
